What are LED Outdoor Wall Pack Lights?

Outdoor Wall Pack lights are the most common outdoor commercial light in america. They secure to the wall in a variety of ways and easy to install.

The front of the LED outdoor wall pack light open on a hinge for mounting and wiring, making them an installers favorite.

They are also highly versatile, the wiring can be from behind or through a number of conduit entrances.

Accessories such as photocells, motion sensors and battery backups can easily be added.

What is unique about LED wall packs? First of all, it can be configured with a photocell sensor, which can improve the efficiency of use and reduce the cost. Secondly, it uses durable die-casting heat sink for outdoor high temperature, heavy rain, and other harsh environments, its operating temperature is -25 ° to 45 °. Finally, different color temperature options: 2700K, 3000K, 4000K, 5000K, 6500K, etc. apply to application.

The traditional lamps are wallpacks fixture with a metal halide bulb, and the ETL listed LED wall packs is divided into many types:

  • Traditional commercial LED wall packs
    Similar to the standard design of a traditional wall pack product, the LED wall packs come with a full glass lens. This lens enables a wider beam angle (120°) and the light is directed outwards and downwards, thus providing greater coverage around the parking lot and the building's exterior. The wall packs led equivalent table is as follows:
70W  10,500lumens 300w
100W 15,000lumens 400w
120w 18,000lumens 500w
  • LED cutoff wall pack
    The Semi cut off wall pack is the most common, it is lighting farther than any other type of wall pack and security lighting, and the simultaneous outward and downward illumination provides greater coverage. Full cutoff led wall pack as the name suggests, in addition to the bottom of the fixtures, the LED commercial wall-mounted illuminator is completely covered and the light is only illuminated downwards. The Cut-off wall pack is ideal for dark sky area to minimize lights pollution.
  • Dusk to dawn outdoor led wall packs

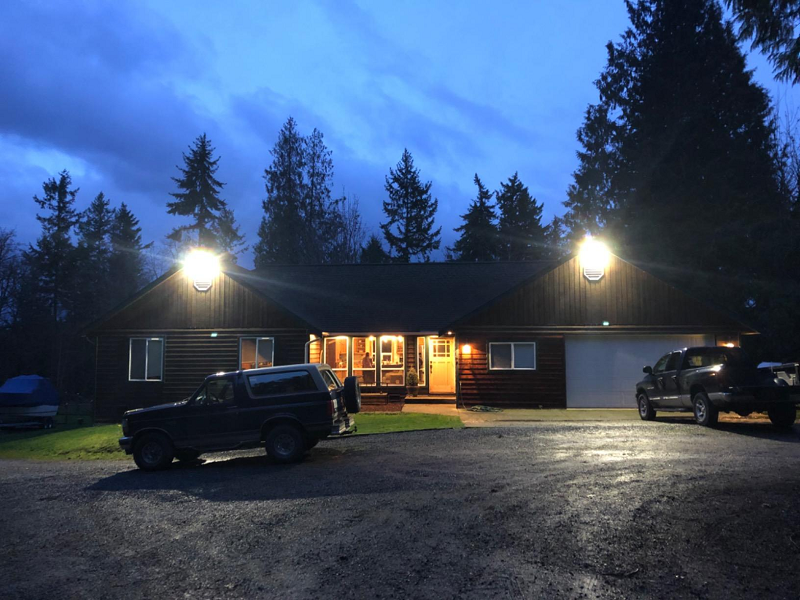

    LED wall packs lights with photocell is ideal for dusk to dawn applications around buildings, doorways, and loading. With the photocell sensor, it automatically lights up when sunlight goes down.

Why  transfering from a HID/HPS wall pack to LED?

CRI 70-95 >80
CCT from 2700K to 6500K from 3000K to 5000K
Startup time immediately 15-30 mins
Light Directionality 120° 360°
Light Emissions no IR and UV light
Heat Emissions produce very little heat produce heavy heat
Light effect 130lm/w-150lm/W 70-100lm/w
Light source bright, centralized bright, disperse
Lifespan >54,000hrs 15,000-25,000hrs
Environmental protection yes no
Flicker no yes
Energy consumption 20% 100%
Price high low
Intelligent mode photocell sensor no
Maintenance almost not frequent
Bulbs broke no yes
IP rated IP65 no
Warranty 5 years warranty 1-2 years warranty


Are you still willing to endure the lumen bounce of MH/HPS wallpacks product? Lumen bounce will lose about 30% of the bulb lumens in the reflector and lamp. In fact, a large amount of metal halide energy is burned essentially as heat rather than as light. Although the cost of purchasing HID and HPS lamps is not high, the follow-up costs (electricity, maintenance, labor) will be 1-2 times that of LED lights.
